Runs · Pathista

In this group

2 pages

The runs of your workflows: the list and the page of one run.

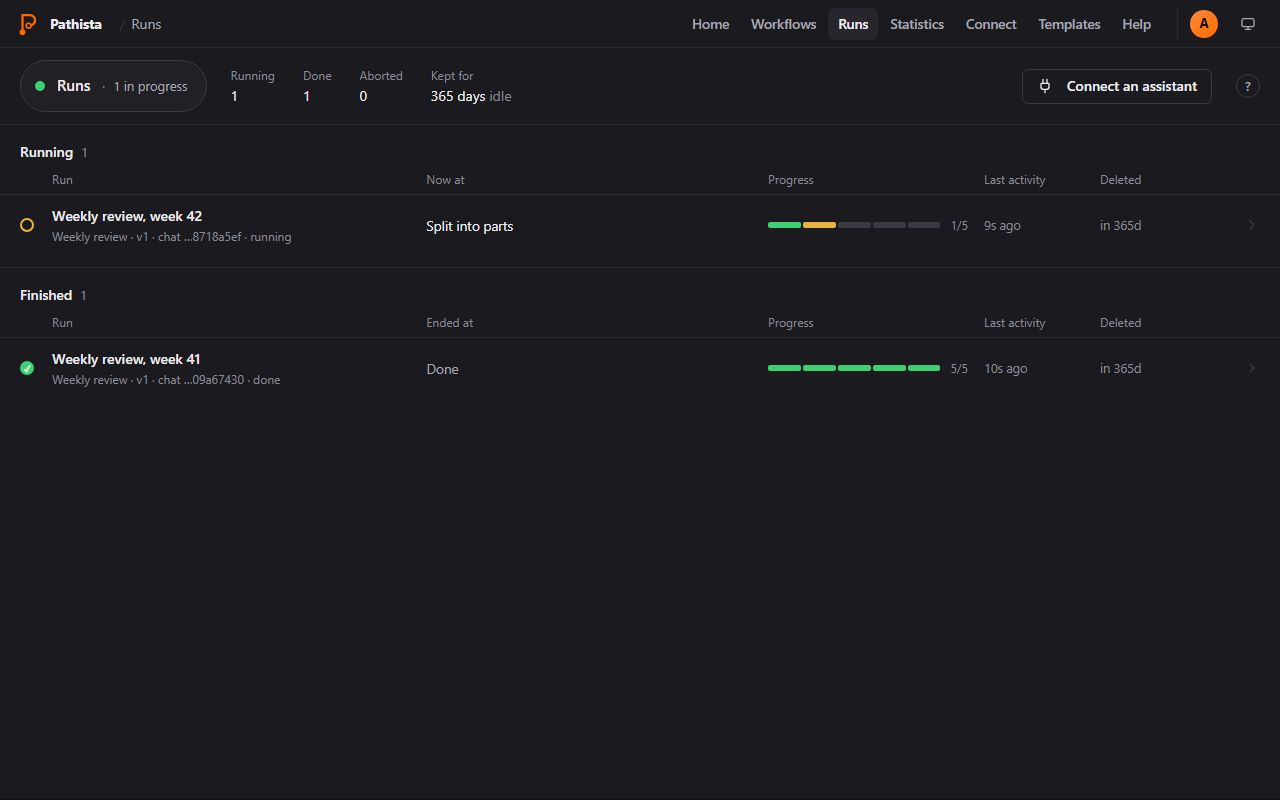

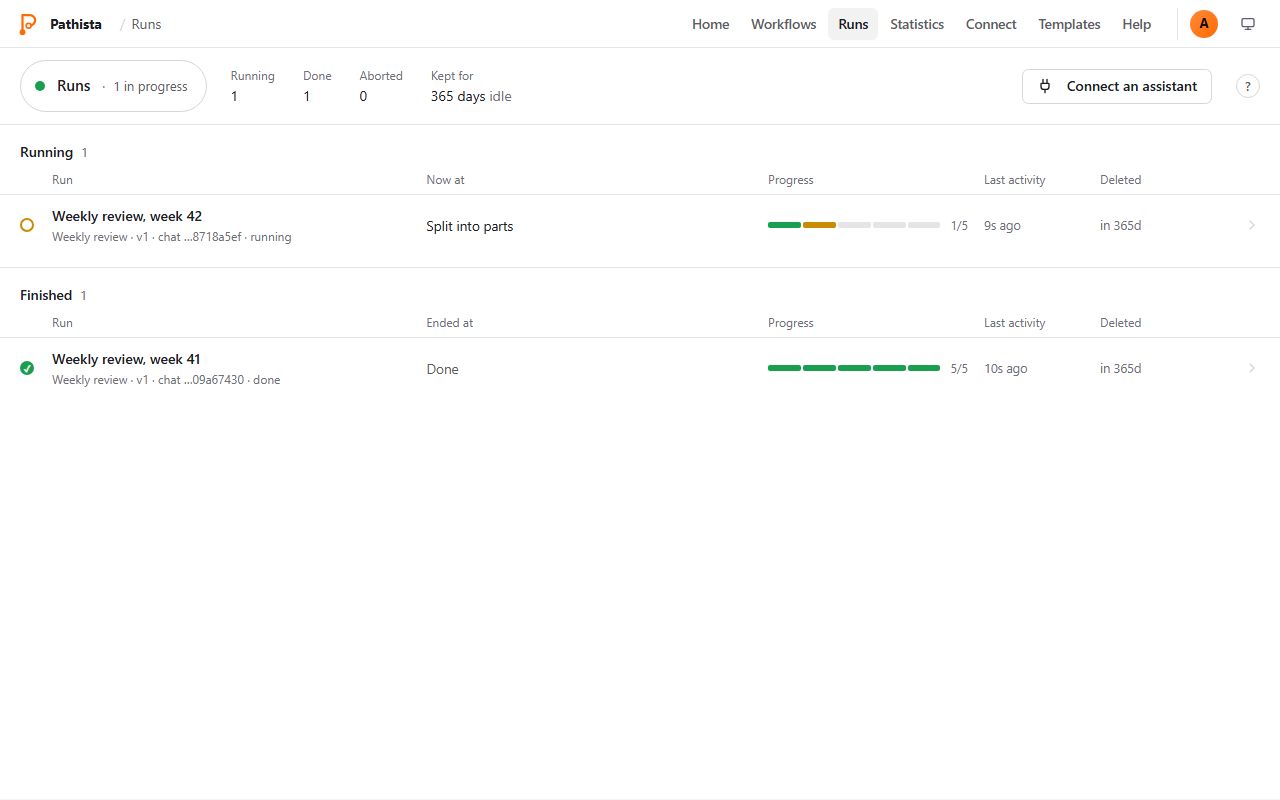

/runs

Every run from every chat in one list, split into running and finished.

You need to be signed in to open this page.

Summary strip: How many runs are running, done and aborted, and how long a run that does not move is kept before it is deleted.
Workflow filter: With more than one workflow, a menu to show the runs of one.
Running / Finished: One row per run: its name, workflow and version, the step it is at (or ended at), a progress bar, when it last moved and when it will be deleted.

Open a run: Click a row to open the run.
Delete (trash icon): Deletes a run for good, after a confirmation. For a run that is still going, the dialog says the assistant can no longer move it.
Show older runs: Loads more of the list.
Connect an assistant: Opens the Connect page.
Company runs: If you belong to a company, opens the company's runs.

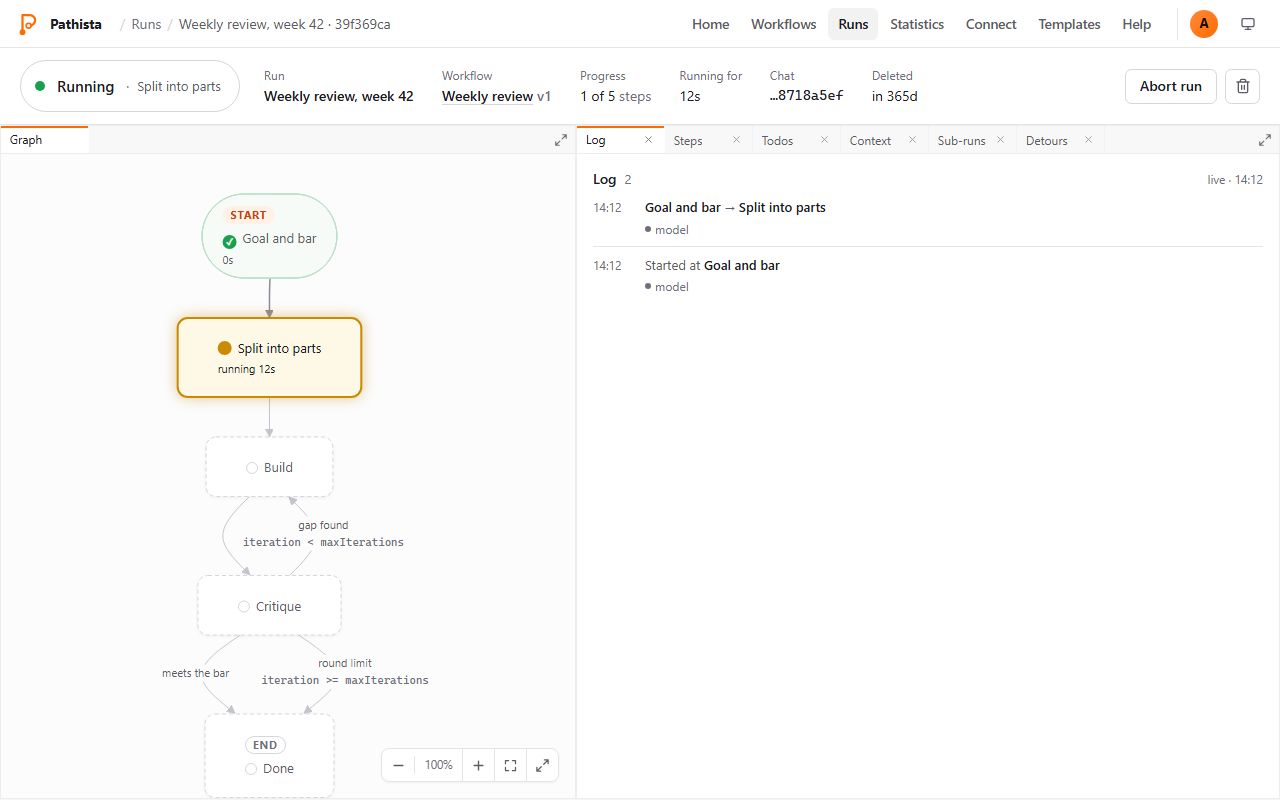

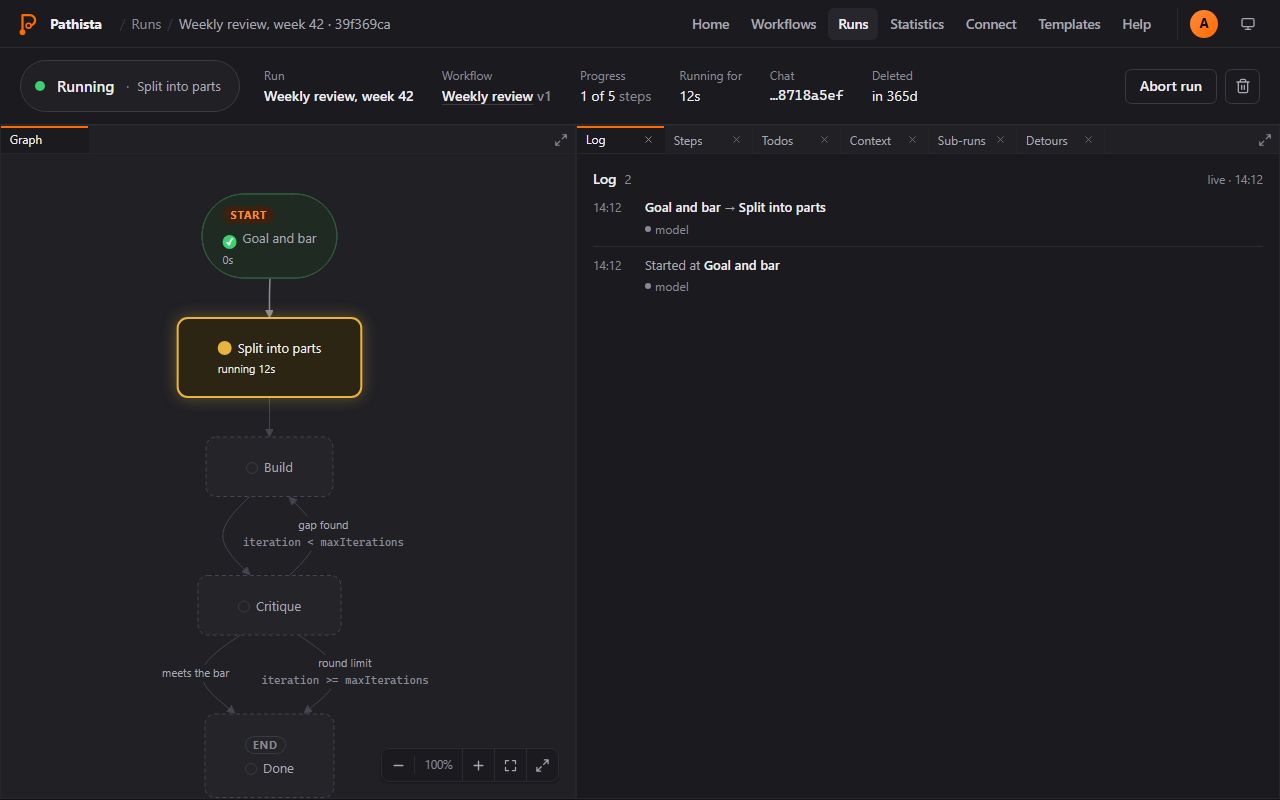

/runs/{id}

One run, live. You see the graph with the current step, the steps, the todos, the log and the variables while the assistant works in the chat.

You need to be signed in to open this page.

Summary strip: The run's name, its workflow and version, progress, the chat it is bound to and when it will be deleted. A sub-run also shows the run it is part of.
Graph: The workflow drawn with the steps done, the current one and the ones to come.
Log: The newest-first record of moves, the summaries that closed each step, notes and closed todos.
Steps: Each step with its state. Under the current step, the ways forward, showing which are open and which are blocked and why.
Todos: Checklist todos, the assistant's own and run todos, each with the step it holds and, once closed, its evidence.
Context: The run's variables and their values.
Sub-runs: Runs started by a step that runs another workflow.
Detours: Where a run started as a detour from another run, the return reminder and the detours started from this one.

Abort run: Stops an open run after a confirmation. It stays listed with its log, but nobody can move it forward.
Delete run (trash icon): Deletes the run and everything it held, after a confirmation.
Rearranging the panels: The panels can be moved around and closed; closed ones come back from the bar as Show buttons.
